Bei diesem Projekt handelt es sich um die Installation einer Klimaanlage eines GebĂ€udes in der GebĂ€udedecke. Die Decke verfĂŒgte bereits ĂŒber Vorinstallationen, die mithilfe von Barrieren schallgedĂ€mpft wurden. FĂŒr die neuen Maschinen sollte ein Ă€hnliches Projekt wie das vorherige durchgefĂŒhrt werden, allerdings mit von AcĂșstica Integral hergestellten Materialien.
Die neue Schallbarriere wurde mit modularen Paneelen des Typs Acustimodul80 von AcĂșstica Integral angefertigt. Dieser Typ Paneel wurde speziell fĂŒr die Konstruktion von Schallbarrieren und akustischen UmschlieĂungen entwickelt. Durch ihre GröĂe und ihr Gewicht sind sie bei der Montage leicht zu handhaben; ihre schallisolierenden und -absorbierenden Eigenschaften machen sie zum idealen Material fĂŒr den Einsatz bei Industriemaschinen. Der Zugang zur Abschirmung erfolgt mithilfe der schalldĂ€mmenden TĂŒr Modell RS7C, die die Schallisolierung der Paneele ohne Leistungsverlust gewĂ€hrleistet.
VORHERIGE SITUATION
Â
NACH DER BEARBEITUNG
Neue Schallbarriere fĂŒr die neuen Maschinen

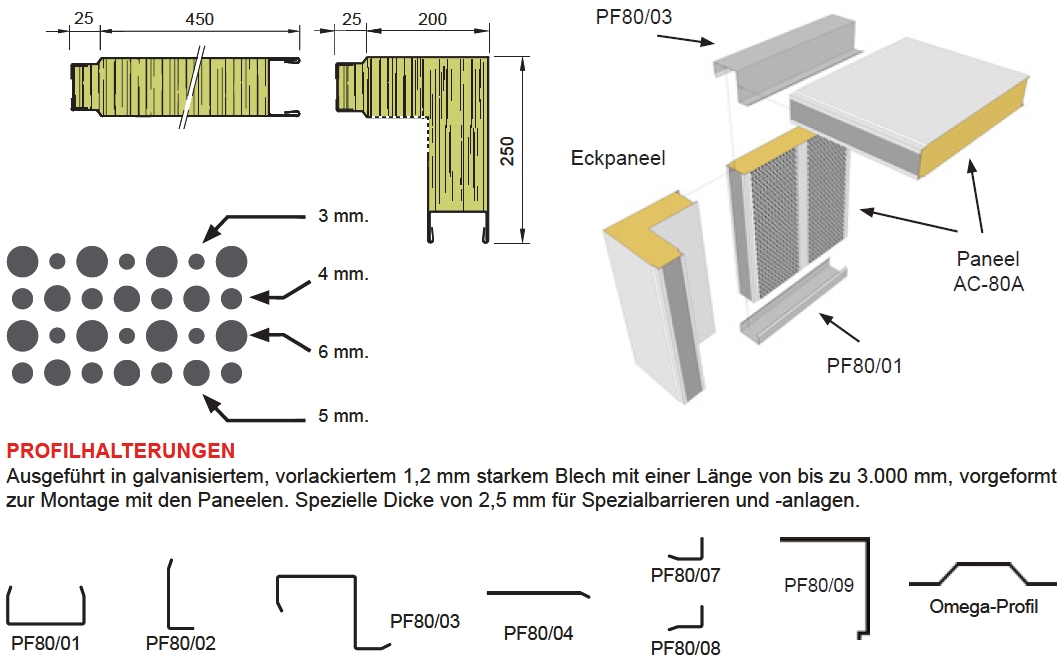

MODULSYSTEM ACUSTIMĂDUL-80
AuĂen: Vorlackiertes, 1mm starkes Blech Innen: Multiperforiertes, vorlackiertes Blech, 0,5 mm Farbe: Hellgrau, entsprechend RAL 9002 Weitere Farben der RAL-Farbpalette auf Bestellung. SchalldĂ€mmendes Material: Steinwolle 70 kg/mÂł Ăberzug: Schwarzes Gewebe Abmessungen: 450 x 2000, 2500, 3000 oder 4000 mm Dicke: 80 mm. Gewicht: 21 kg/mÂČ Prozentanteil der perforierten FlĂ€che: 28% Maximal zulĂ€ssige Spannung: Ï = 224 N/mmÂČ Young-Modul: E = 210.000 N/mmÂČ Brandverhalten: B s1 d0 gemÀà AITEX Nr. 14AN1833 Schallisolierung: APPLUS Ref. Nr. 12/4570-709 Schallabsorption: APPLUS Ref. Nr. 12/4570-708 CE-Kennzeichnung
Schallbarrieren mit schallabsorbierenden modularen Paneelen Acustimodul80.
SchalldĂ€mmende TĂŒr RS7C.
