Barrière acoustique pour climatiseurs

Le projet en question concerne les installations de climatisation d’une bâtisse, situées sur le toit de celle-ci. Avant notre traitement, le toit est équipé d’installations antérieures traitées acoustiquement au moyen de barrières. Pour les nouvelles machines qui vont venir compléter les existantes, un traitement avec des caractéristiques similaires à celles-ci a été envisagé, mais avec les matériaux fabriqués par Acústica Integral.

La nouvelle barrière acoustique avec des panneaux acoustiques modulaires du type Acustimodul80 d’Acústica Integral. Ce type de panneau est conçu spécifiquement`pour la construction de barrières et de cloisons acoustiques. Leur taille et leur poids permettent un montage facile, et grâce à leurs caractéristiques isolantes et absorbantes, ils sont appropriés pour le traitement de matériel industriel. L’accès à l’intérieur de l’écran acoustique se réalise avec la porte acoustique du modèle RS7C, qui permet de maintenir l’isolation acoustique du panneau sans pertes.

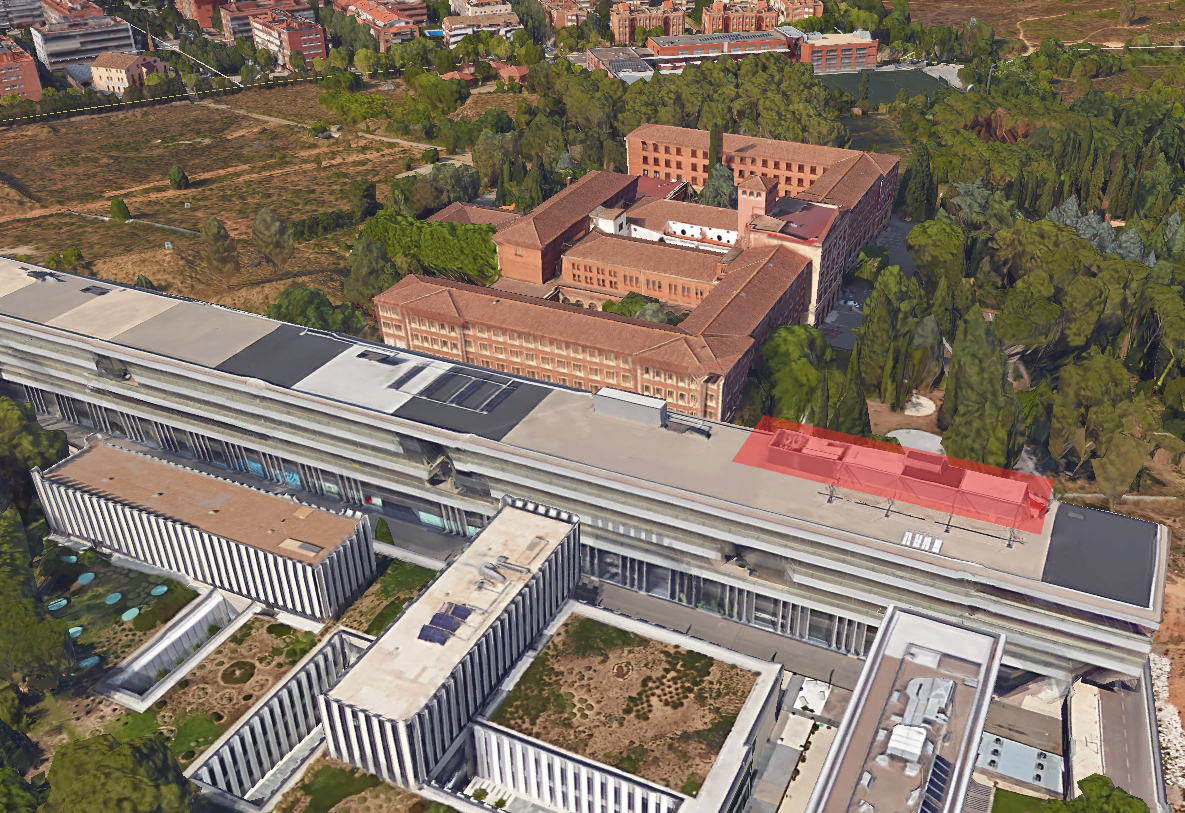

SITUATION PRÉCÉDENTE

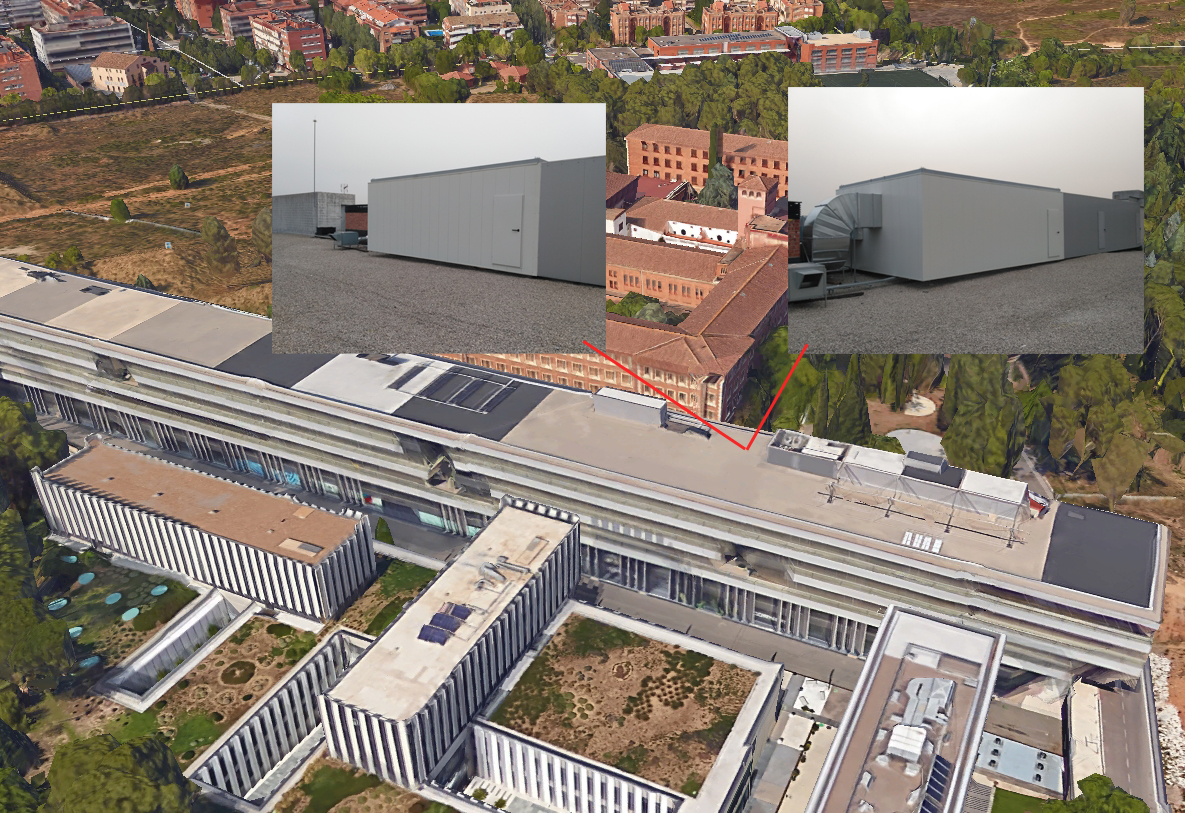

POSTÉRIEUR AU TRAITEMENT

Nouvelle barrière acoustique

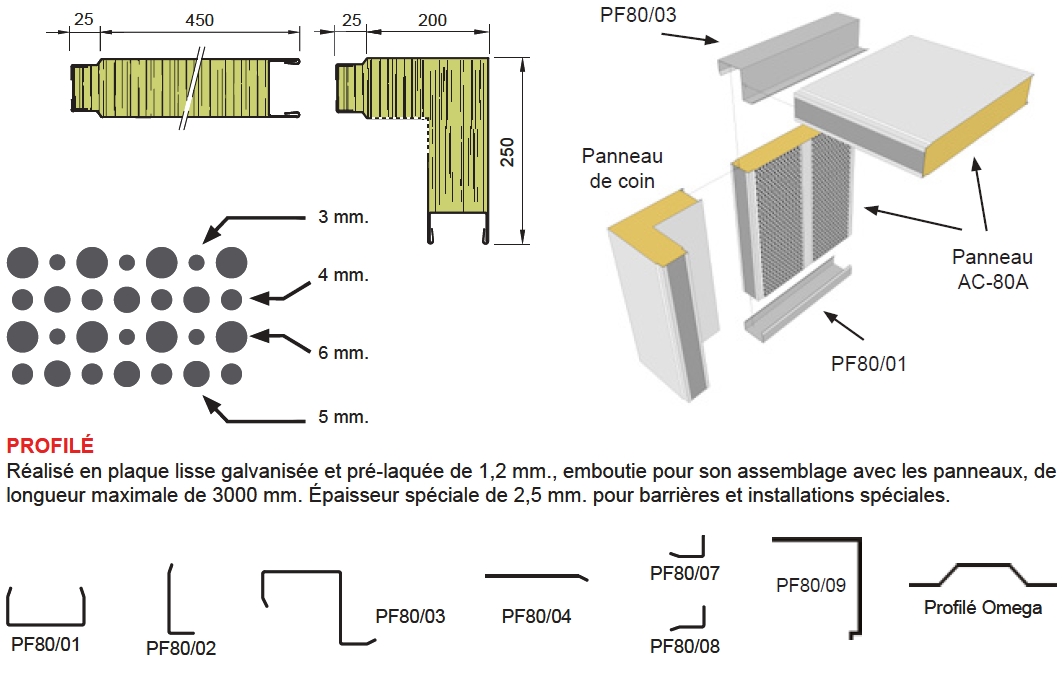

SYSTÈME MODULAIRE ACUSTIMÓDUL-80

PROFILÉS

Constituée en plaque de tôle lisse galvanisée ou prélaquée, formée pour son assemblage avec les panneaux et d’une longueur maximale de 3000 mm. Épaisseur spéciale de 2,5 mm pour barrières et installations spéciales.



Extérieur : Plaque de tôle lisse prélaquée de 1 mm.e.
Intérieur : Plaque multiperforée prélaquée de 0,5 mm.e..
Couleur : Gris clair similaire RAL 9002.
Autres couleurs RAL sur demande.
Matériau absorbant : Laine de roche de 70 Kg/m³.
Finition : En voile noir.
Dimensions : 450 x 2000, 2500, 3000 ou 4000 mm.
Épaisseur : 80 mm Poids : 21 Kg/m².
Pourcentage de surface perforée : 28 %.
Tension maximale admissible : σ = 224 N/mm².
Module de Young : E = 210.000 N/mm².
Réaction au feu : B s1 d0 selon AITEX Nº 14AN1833.
Isolation acoustique : APPLUS Dossier. Nº 12/4570-709.
Absorption acoustique : APPLUS Dossier. Nº 12/4570-708.
Marquage CE.

FICHE TECHNIQUE INSTALLATION

Projet : Barrières acoustiques pour équipements climatiseurs.
Réf : O02BC1700035
Secteur : Construction, Climatisation, Barrières Acoustiques

Traitements :

  • Barrières acoustiques avec panneaux acoustiques modulaires Acustimodul80.
  • Porte acoustique pour accès RS7C.
